Home - Products - Upvc Roof Sheet - Corrosion-Resistant Industrial Roofing T1070 PVC Roof Sheet

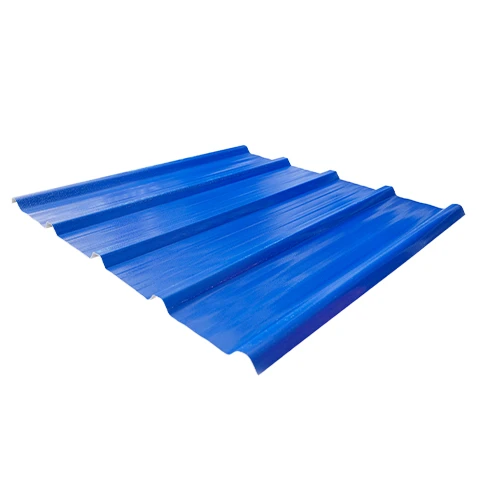

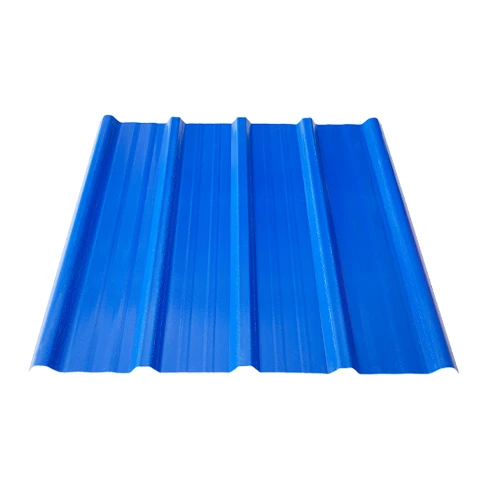

Corrosion-Resistant Industrial Roofing T1070 PVC Roof Sheet

The T1070 is a trapezoidal PVC roof sheet engineered for industrial environments where corrosion, chemical exposure, and humidity shorten the life of conventional roofing. With an ASA weather-resistant surface layer and a rigid trapezoidal profile, it combines chemical inertness with structural reliability — a practical upgrade for factories, chemical plants, and coastal warehouses.

Customizable Features

Thickness: Varied options for architectural needs and enhanced durability.

Color: Wide range of vibrant, long-lasting colors.

Material: Sustainable, eco-friendly, and protective options.

View More

Send an Inquiry Now!

You will get a reply within 24 hours.

Name

E-mail

WhatsApp

Message

Product Parameter
Parameter Value
Product Type  pvc roof tiles
Overall Width 1070 mm
Effective Coverage Width 1000 mm
Coverage Efficiency 93%
Thickness Options 1.5 / 2.0 / 2.2 / 2.5 / 2.8 / 3.0 mm
Wave Height 35 mm
Wave Width 75 mm
Wave Pitch 250 mm
Number of Ribs per Sheet 4 full trapezoidal ribs
Length Customized to project specifications
Surface Material ASA (acrylonitrile-styrene-acrylate) weather-resistant film
Core Material PVC + ultra-fine calcium carbonate
Fire Rating B1 (self-extinguishing)
Impact Resistance Withstands 1 kg steel hammer from 1.5 m height
Freeze-Thaw Durability No damage after 10 cycles
Self-Cleaning Yes — ASA lotus leaf effect surface
Recyclable Yes
Standard Purlin Spacing ≤ 660 mm
Product Advantages

1. Inherent Corrosion Resistance — Not a Coating
The PVC material is chemically resistant at the molecular level. It does not react with acid rain, alkaline industrial fallout, salt spray, or common chemical vapors (such as ammonia, hydrogen sulfide, and sulfur dioxide). This is fundamentally different from galvanized or coated metal sheets, where corrosion begins the moment the protective layer is scratched — which happens during transport, cutting, or fastener installation. With PVC, there is no protective layer to breach.

Where this matters most:

Coastal warehouses and port facilities (salt spray corrosion)
Chemical processing plants (acid/alkali vapor exposure)
Fertilizer storage and agricultural buildings (ammonia exposure)
Wastewater treatment facilities (hydrogen sulfide)


2. Verified Impact and Weather Resistance
Independent testing validates the sheet's structural durability:

Impact resistance: Withstands impact from a 1 kg steel hammer dropped from 1.5 meters without cracking or penetration. This is relevant for real-world conditions — falling tools during installation, hail, or wind-blown debris on site.
Freeze-thaw durability: After 10 complete freeze-thaw cycles of testing, the sheet shows no blistering, delamination, or visible cracking. This matters for regions with winter temperatures below freezing, where materials that absorb moisture can fail from internal ice expansion.


3. B1 Fire Rating for Code Compliance
The T1070 sheet achieves B1 fire performance classification (flammable but self-extinguishing when the ignition source is removed). This meets the fire safety requirements for most commercial and industrial construction applications, including factories, warehouses, and public buildings where building codes mandate specific fire ratings for roofing materials.

PVC's inherent chlorine content (~57% by weight) gives it natural flame-retardant properties — when exposed to fire, it chars and forms a carbonaceous layer that slows further combustion, rather than dripping and spreading flame like some thermoplastic materials.

4. Self-Cleaning Surface — Lower Maintenance Cost
The ASA surface layer is engineered with a smooth, low-surface-energy finish that produces a "lotus leaf effect." Rainwater beads on the surface and rolls off, carrying dust, dirt, and light debris with it. In most environments, the roof maintains an acceptably clean appearance with natural rainfall alone, reducing the need for manual cleaning — a meaningful cost factor in large industrial facilities where rooftop access requires safety equipment and scheduled downtime.


5. High Load-Bearing Capacity with Low Dead Weight
The trapezoidal profile geometry provides structural rigidity that supports standard industrial purlin spacing (typically ≤660 mm) without excessive deflection. At the same time, PVC's low density means the sheet weighs significantly less than metal or concrete tile roofing of equivalent span capacity. Lower dead weight reduces load on the building's primary structure, which can translate to lighter (and less expensive) steel framing — especially valuable for large-span industrial buildings.

6. Recyclable and Environmentally Compliant
At the end of its service life, the T1070 sheet can be recycled — the PVC material is ground, reprocessed, and used in secondary applications such as pipes, flooring, or lower-grade construction products. The product also meets the requirements of China's Environmental Labeling certification (commonly referred to as the "Ten Rings" label), indicating compliance with national standards for environmentally preferable building materials.

7. Factory-Cut Lengths Reduce Waste and Installation Time
Sheets are produced to the exact lengths specified in the project's roof plan. This eliminates on-site cutting — one of the largest sources of material waste, labor cost, and safety risk in roofing installation. Fewer joints also mean fewer potential leak points over the roof's service life. The sheets arrive at the site ready to position and fasten.

COLOR SWATCHES

We offer a selection of 20 standard colors and also provide custom color services to meet specific market demands.

View More

Product Parameter
Width Efficient width Thickness Length Purlin distance Application
10700mm 1000mm 2.0mm, 2.5mm, 3.0mm Customized <1200mm Roof, ceiling, wall panel etc

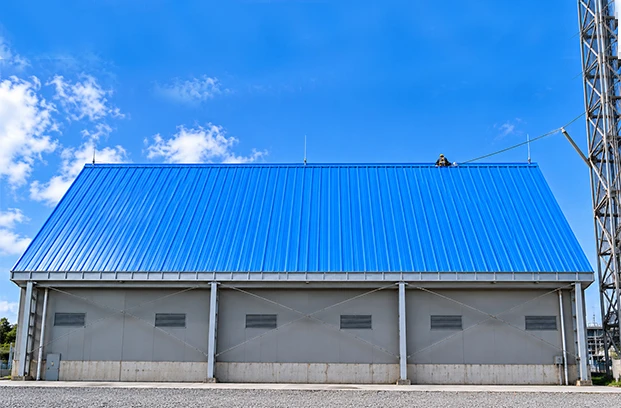

Actual installation result of T1070 PVC roof sheet
